Module Details¶

The Module Details page gives you a focused view of one module in OpenDepot Workshop. Open it from the module list to inspect the module's current version, provider, README, usage example, inputs, outputs, contract, storage metadata, and available versions.

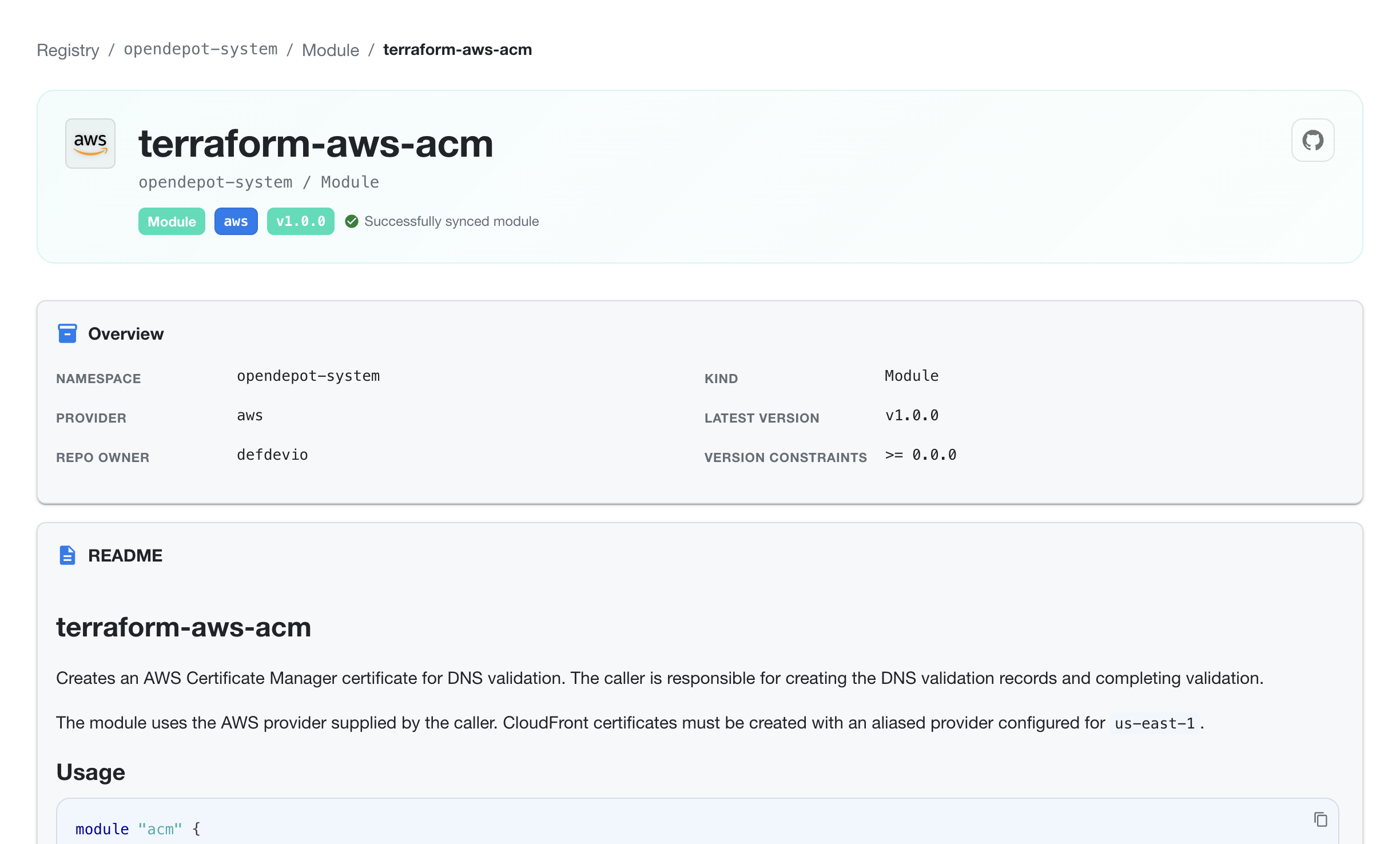

OpenDepot Workshop Module Details page showing module status, overview metadata, README, and usage example

Module identity and status¶

The header shows the module name and its Kubernetes location, for example opendepot-system / Module. It also displays:

the module's provider namespace
the latest synchronized version
the current synchronization status
a link to the module's upstream source when one is available

The Overview section summarizes the module's namespace, kind, provider, repository owner, latest version, and version constraints.

README and usage¶

When a module README is available, Workshop renders it directly on the details page. The README can explain the module's purpose, provider requirements, regional considerations, and other usage guidance maintained by the module publisher.

The Usage section includes a ready-to-copy module block with the OpenDepot source address and the module's version constraint. Use this block as a starting point when consuming the module from OpenTofu or Terraform.

Module contract¶

The Contract section presents the normalized module interface used by Workshop. It shows the module requirement, the source version from which the contract was derived, and a structured table of inputs and outputs with their types, required status, defaults, and descriptions.

This section is useful when comparing the module's published README with the interface extracted from its source archive.

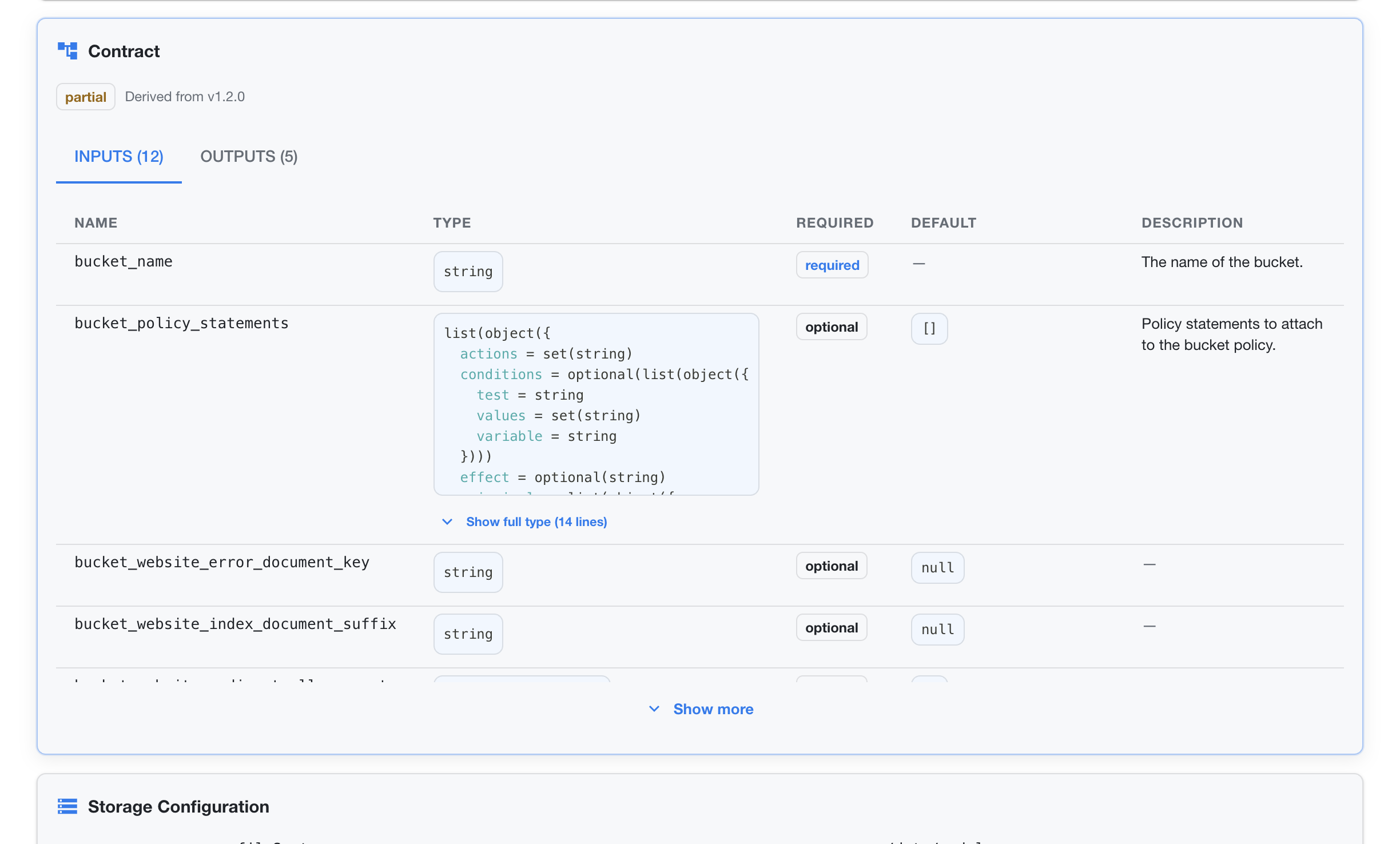

OpenDepot Workshop module contract showing Inputs and Outputs tabs, typed arguments, required status, defaults, and descriptions

Use Show more to expand additional inputs or outputs. Contracts appear only when Assembly Line is enabled and the module version has a successfully derived contract.

Note

Enable Assembly Line with assembly.enabled: true in the Helm values, and set server.image.tag and version.image.tag to a -assembly image tag. The UI must also be enabled with ui.enabled: true. See Assembly Line Configuration.

Storage, GitHub, and Depot settings¶

The details page shows the configuration that controls where the module is stored, how its source metadata is retrieved, and which Depot manages it.

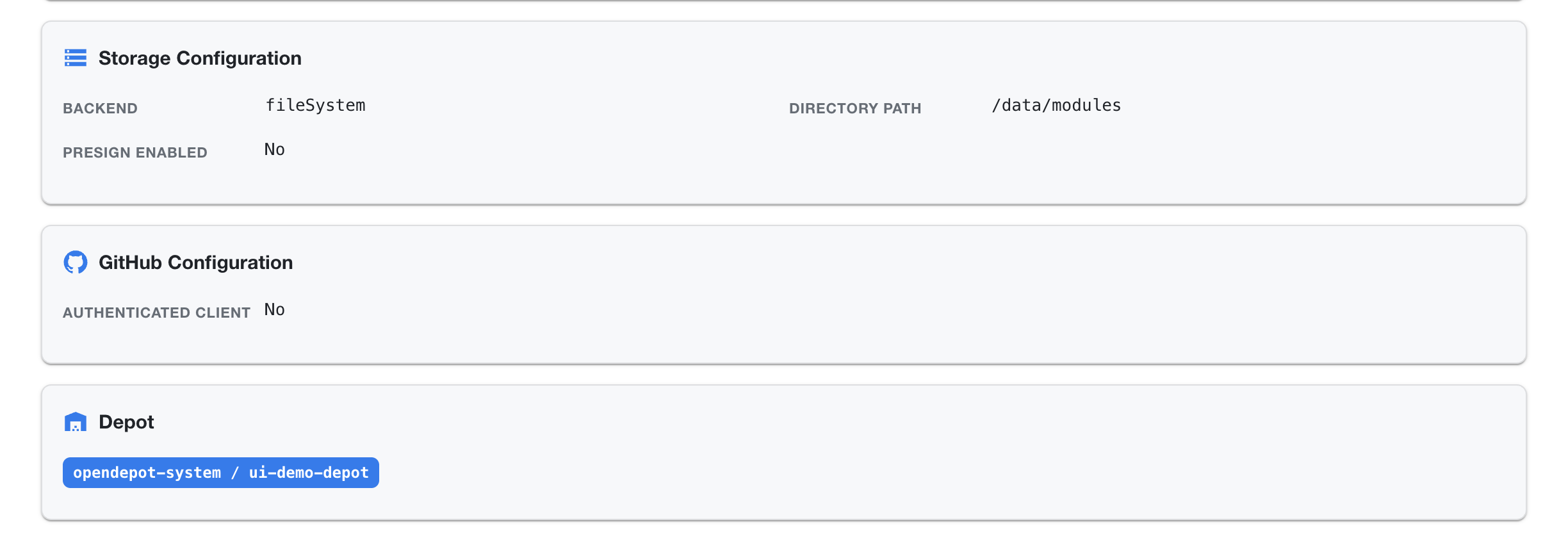

OpenDepot Workshop module Storage Configuration, GitHub Configuration, and Depot settings

Storage Configuration¶

Storage Configuration identifies the backend serving the module archive and the directory used by that backend. Presign enabled indicates whether downloads use storage-native pre-signed redirects instead of being streamed through the server.

GitHub Configuration¶

GitHub Configuration shows whether an authenticated GitHub client was used for source metadata and archive-related operations. An authenticated client can provide access to private or rate-limited GitHub resources when configured by the deployment administrator.

Depot¶

The Depot identifies the resource that discovered and manages the module. Select the Depot link to inspect its polling, storage, and managed-resource configuration.

Versions¶

The Versions view lists synchronized module archives with their sync status, resource name, filename, checksum, scan timestamp, and findings.

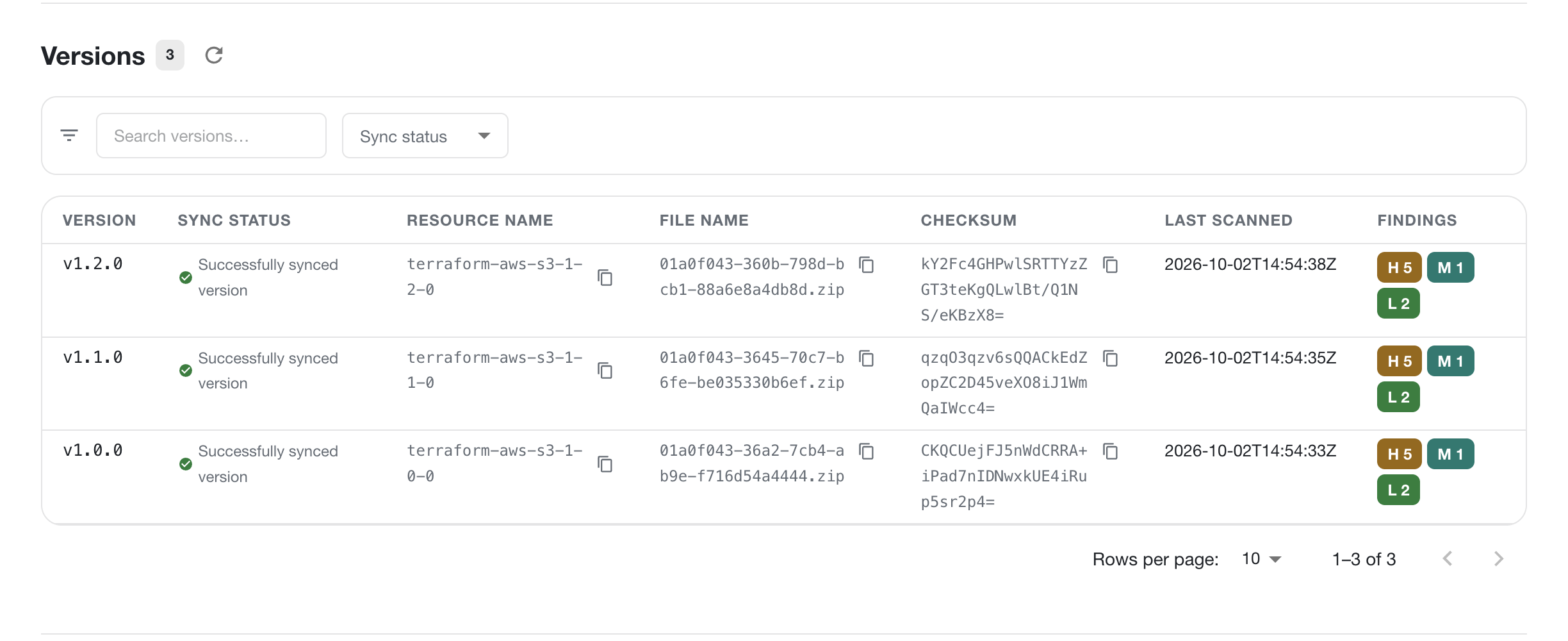

OpenDepot Workshop module Versions view showing filters, synchronized archives, checksums, scan timestamps, and findings

Use the search field and sync-status filter to narrow the list. Each row represents one module archive and includes the version, generated resource name, archive filename, checksum, last scan timestamp, and severity counts. Use the pagination controls when a module has more versions than the current page.

A module version can be selected to inspect its version-specific metadata and scan results. The information shown follows the same visibility rules as the rest of Workshop.

Scan Findings¶

The Scan Findings view shows the security findings associated with a selected module version. Use the version selector, search field, severity filter, sort field, and sort order to focus on the findings that need attention.

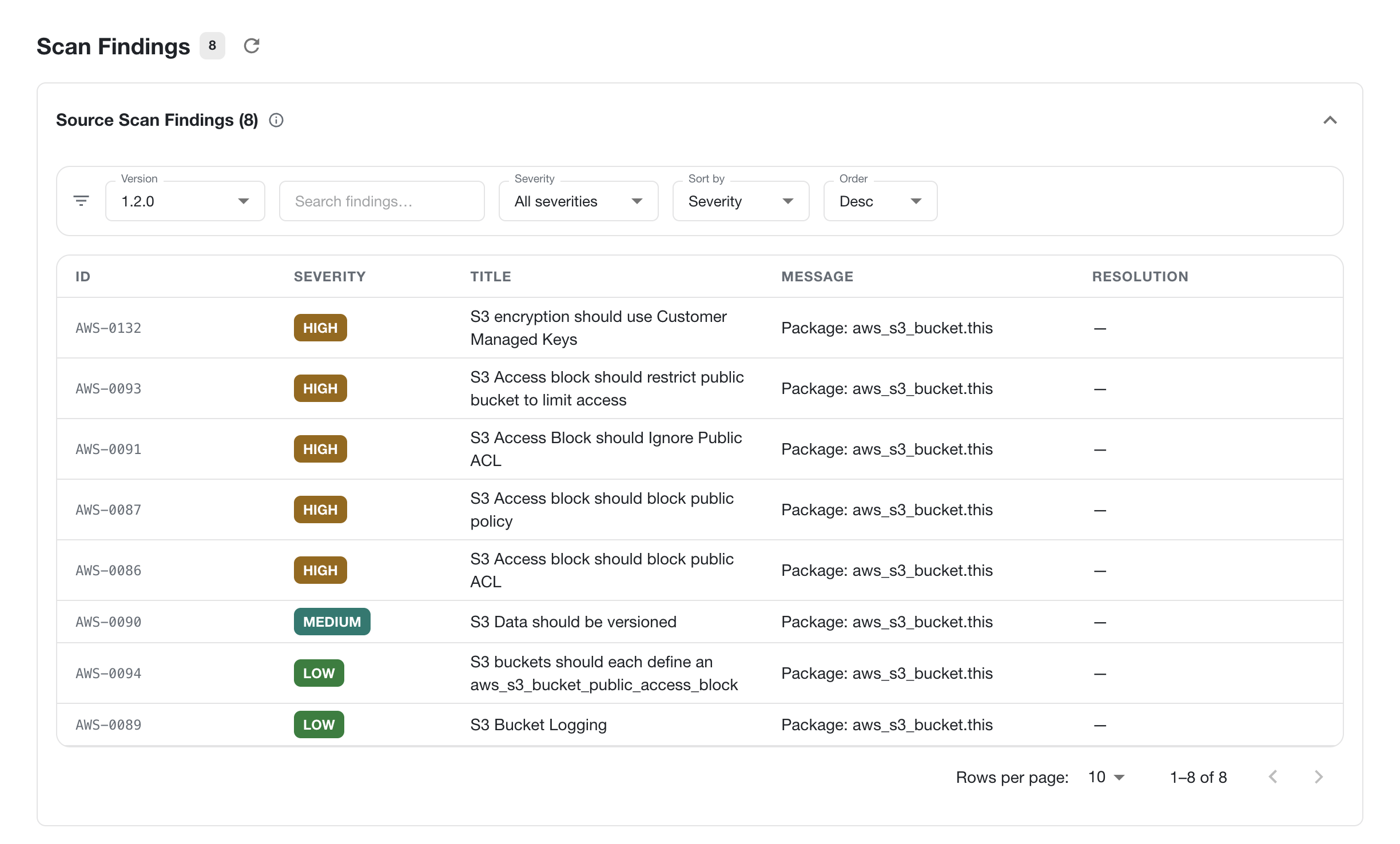

OpenDepot Workshop module Scan Findings view showing filters, severity labels, affected packages, and resolutions

Each finding includes its rule ID, severity, title, affected package or resource, message, and recommended resolution. The count in the page header reflects the findings currently associated with the selected version.
